PCI Express対応製品 XpressConverter

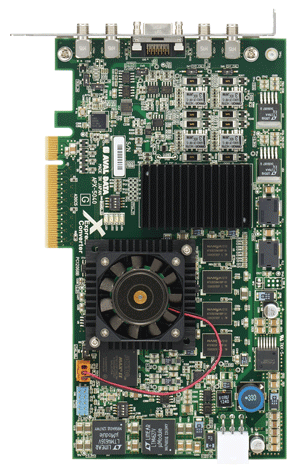

High-speed A/D Converter Board

APX-5040

 High-speed A/D converter board with resolution of 14 bits, high-speed sampling capable of high-speed sampling of 400 MHz, 2 high-speed signals can be recorded.
With various trigger modes, you can acquire necessary data and process data with FPGA.
In this FPGA, customization is also possible according to the use of the user.
With built-in DMA controller, memory transfer is possible without CPU intervention, and by supporting PCI Express 2.0 (Gen 2) 5.0 GT / s x 8, it maximizes the performance of analog input bandwidth.

rohs


The specification and externals of product are for the improvement and might be changed without previous notice




Features

  • Using high speed ADC with 14 bit / 400 MHz sampling

  • ± 2 V / ± 1 V / ± 0.5 V single-ended input to 2 ch

  • External trigger input ? External clock input for each 1 channel

  • Supports variable frequency input

  • General purpose DI/DO for each 4 ch

  • General purpose AO 2 ch

  • DDR3-SDRAM (2 Gbyte) is installed as FIFO Memory

  • Memory transfer is possible without using a CPU with a built-in DMA controller

  • Equipped with Up Data function of FPGA data

  • PCI Express 2.0 (Gen 2) 5.0 GT/s x 8 compatible

Specifications

Model APX-5040
Input channel Single end 2ch
Sampling clock 400 MHz
Resolution 14bit
Sampling time 2.5 ns (min)
Sampling count 256 M words / 1 channel
Input range ± 2 V, ± 1 V, ± 500 mV
Input impedance 50 Ω
Trigger External trigger / Analog trigger / Soft trigger / DI trigger (Various trigger modes supported by FPGA)
Memory DDR3 - SDRAM (2 GB)
FPGA LSI: EP4SGX180HF35C2N (manufactured by ALTERA)
Trigger type: Internal trigger (analog trigger), external trigger, soft trigger, DI trigger
Analog trigger: Edge level pulse
Trigger position: pre / post delay
User logic: Free space can be customized
DA Circuit Number of output: 2 ch
Resolution: 16 bits
Output range: -4 V to +4 V
System bus PCI - Express 2.0 (Gen 2) 5.0 GT/s x 8
Power supply + 12 V ± 9%, + 3.3 V ± 8%
Operating environment Temperature 0 to 50 ° C, humidity 35% to 85% (no condensation)
Dimensions 192.65 mm x 111.15 mm, Panel width 20 mm (not including protrusions) Weight 232 g
Supported OS Windows 7/8 compatible with 32 bit / 64 bit each
Environmental compliance RoHS

Panel



Other Document

項目 Block diagramリンク
