PCI Express対応製品 XpressConverter
High-speed, High-resolution
A/D Converter Board

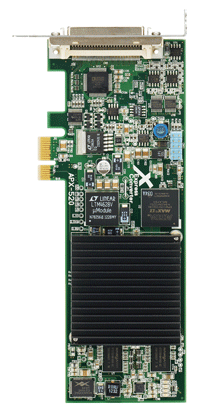

APX-520

rohs


The specification and externals of product are for the improvement and might be changed without previous notice




Features

  • AD converter has resolution of 18 bits, sampling clock 200 KHz (Max)

  • Input is 16 channels (single ended), input range can be switched every 8 ch, all points can be sampled simultaneously

  • DA converter resolution 16 bit

  • Output is 4 ch, output range ± 5 V

  • FPGA can migrate

  • 256 MB of memory installed

  • DIO (input 4 ch, output 4 ch) mounted

  • PCI-Express 2.0 x 1 Gen 2 (2.5 GT / s) Low Profile

Specifications

Model APX-520
AD Circuit Number of Input
(Synchronous Sampling)
16
Sampling Clock 200KHz (max)
Resolution 18bit
Anti-aliasing Filter 22KHz@-3dB (±10V) / 15KHz@-3dB (±5V)
Input Inpedance 1MΩ
Input Current 5.4μA @+10V
Coupling DC coupling
Input Range 1MΩ / ±5V or ±10V
Maximum Input Voltage 1MΩ / ±16.5V
DA Circuit Output 4ch
Resolution 16bit
Output Range -5V to +5V
DIO Input Number of Input : 4ch
Signal Level : LVTTL(5V Tolerant)
Output Number of Output : 4ch
Signal Level : LVTTL(+3.3V Output)
Trigger/
Clock
Internal Clock 1Hz to 200KHz. increments of 1Hz
(*Be adjusted to settable clock)
External Trigger Input in increments of AD 8ch from DI
Host I/F PCI Express2.0x1Gen2(2.5GT/s)
Power Requirements +3.3V±9%280mA
+12V±8% 510mA
Dimension 168mmx69mm,
Panel width: 20mm (non-projection)
Weight 110g
OS Windows
Environment Temperature: 0 to 50℃,
Humidity: 35 to 85% (non-condensing)
RoHS

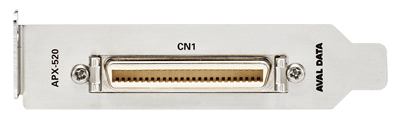

Panel



Other Document

項目 Block diagramリンク
