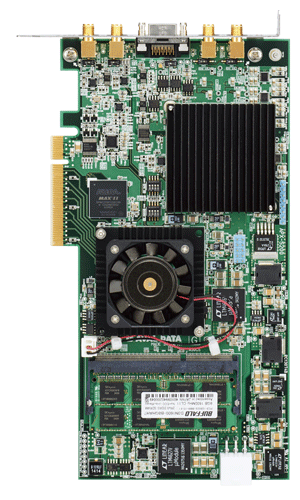

High-speed A/D Converter Board

APX-5200A

12bit / 1GSps, 2-channel High-speed simultaneous sampling A/D Converter board

rohs


The specification and externals of product are for the improvement and might be changed without previous notice




Features

  • 12bit/1GSps sampling high-speed ADC

  • ± 0.5V single-ended input:2ch

  • 2-channel simultaneous sampling

  • 2GSps, 12bit, 1-channel high-speed sampling in interleaved mode

  • External trigger input / External clock input:1ch

  • 2-channel analog output function(output arbitrary points by using PC memory)

  • General purpose DI, DO :4ch each

  • Equipped with EDDR3-SDRAM(8GByte)as a FIFO Memory

  • Memory transfer using built-in DMA controler without CPU

  • FPGA Up Date function

  • PCI Express 2.0(Gen2) 5.0GT/s x8

  • RoHS compliant

Specifications

Model APX-5200
Input Channel Single-ended 2ch (Interleaved mode:Single-ended 1ch)
Sampling Rate 1GSps (Interleaved mode: 2GSps)
Resolution 12bit
Sampling Time 1ns(min) (Interleaved mode: 0.5ns(min))
Number of Samples 2G word/2ch, 4G word/1ch
Input Range ±500 m V
Input Impedance 50 Ω
Trigger External trigger/ Analog trigger/ Software trigger
Memory DDR3-SDRAM(8Gbyte)
FPGA 5SGXMA3K1F40C2N(ALTERA)
Trigger type:
Internal trigger (Analog trigger)
External trigger
Software trigger
Analog trigger:
Edge / Pulse
Trigger position:
Pre / Post / Delay
General-purpose AO Number of output : 2ch
Resolution : 16bit
Output range : -4V to +4V
Input Interface SMA connector
System Bus PCI Express2.0 (Gen2) 5.0GT/s x8
Power Requirements +12V ± 9%, +3.3V ± 8%
Environment Operating temperature: 0℃ to 50℃
Humidity: 35% to 80%(non-condensing)
Dimensions 212.5mm x 111.15mm, Panel width 20mm (without projection)
OS Windows7/8 (32bit/64bit)
Environmental Consideration RoHS

Panel



Other Document

項目 Block diagramリンク
