PCI Express GiGA CHNNEL
8.5Gbps High-speed Optical Communication Board

AGM-781A 新製品

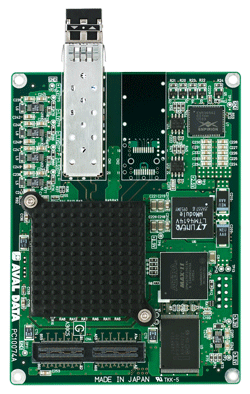

AGM-781A is a card type GiGA CHANNEL module
which enables 8.5Gbps high-speed serial communication of the data within your equipment .
It can be easily mounted by optical cable connection between AGM-781A and the connection of memory-like interface with equipment.
Since it supports entire protocol processing completely in hardwar which required for communication, no special processing is necessary.

rohs
Patent acquisition


The specification and externals of product are for the improvement and might be changed without previous notice

Features

●Up to 64 of optical cable connectivity between boards
●Simple protocol
●Easy data sharing between different OS or different systems
●Up to 8.5Gbps high-speed data communication
●Supports communication function completely in hardware
●Supports interrupt of arbitrary internode communication

Embed 8.5Gbps Transfer Function Into Your Equippment

AGM-781A enables easily embed 8.5Gbps transfer tunction on your original-board



Specification

Model
AGM-781A
Host I/F
AVALDATA Original bus(LVDS)
Communication Format

Optical fiber: 8.5Gbps×1ch
Transfer rate: 8.5Gbps
Transfer mode: Multi Mode
Internodal distance(MAX): 150m *1
Laser format: 850nm VCSEL
Laser safety standards: Class 1
Communication Connector&Cable
Fiber diameter: 50μm
Connector format: LC connector
Communication Protocol
Original protocol
Transfer Rate
(Theoretical value
800MByte/s (MAX) connecting with AGM-781 P to P
Data Transfer Delay
450ns/Node (Receiving → Transmitting )
Except cable delay
Connection Capabilities
64node(MAX)
Communication Controller (with FPGA)
AVAL DATA original protocol
Memory
 −
Main Functions
Doorbell function, shared register communication,
status LED:ACT/LNK/ERR, recieving filter
Dimensions
115.00mm×85.00mm
Power Requirements
+3.3V:1.7A(MAX)(except inrush current or ripple current)
Environment *2
Operating temperature: 0℃ to 50℃
Humidity: 35% to 80%(non-condensing)
OS
 −

*1: Maximum internodal distance differ according to the fiber diameter of optical   cable to be used.
*2: Storage environment
   Temperature: -20℃ to 70℃ , Humidity 35% to 80% (non-condensing)

Connectable Products

AGM-781A can be connected with following product.
It can easily shared memory between products which in different plat forms or different systems.

PCI Express bus Product : APX-781 リンク

Connection List Of GiGA CHANNEL →
