PCI Express GiGA CHNNEL
17Gbps High-speed Optical Communication Board

AGM-782A 新製品

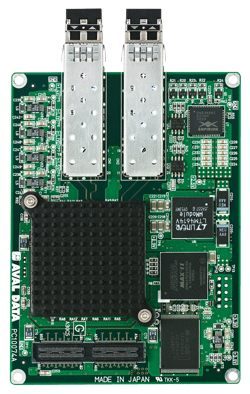

AGM-782A is a card type GiGA CHANNEL module
which enables 17Gbps high-speed serial communication of the data within your equipment .
It can be easily mounted by optical cable connection between AGM-782A and the connection of memory-like interface with equipment.
Since it supports entire protocol processing completely in hardwar which required for communication, no special processing is necessary.

rohs
Patent acquisition


The specification and externals of product are for the improvement and might be changed without previous notice

Features

●Up to 64 of optical cable connectivity between boards
●Simple protocol
●Easy data sharing between different OS or different systems

●Up to 17Gbps high-speed data communication
●Supports communication function completely in hardware
●Supports interrupt of arbitrary internode communication

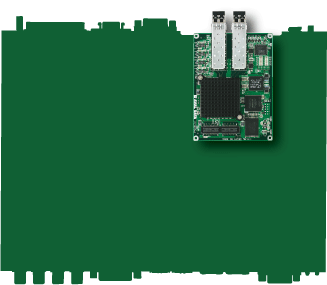

Embed 17Gbps Transfer Function Into Your Equippment

AGM-782A enables easily embed 17Gbps transfer tunction on your original-board

Specification

Model
AGM-782A
Host I/F
AVALDATA Original bus(LVDS)
Communication Format

Optical fiber: 8.5Gbps×2ch
Transfer rate: 17Gbps
Transfer mode: Multi Mode
Internodal distance(MAX): 150m *1
Laser format: 850nm VCSEL
Laser safety standards: Class 1
Communication Connector&Cable
Fiber diameter: 50μm
Connector format: LC connector
Communication Protocol
Original protocol
Transfer Rate
(Theoretical value
1700MByte/s(MAX) connecting with AGM-782 P to P
Data Transfer Delay
250ns/Node (Receiving → Transmitting )
Except cable delay
Connection Capabilities
64node(MAX)
Communication Controller (with FPGA)
AVAL DATA original protocol
Memory
 −
Main Functions
Doorbell function, shared register communication,
status LED:ACT/LNK/ERR, recieving filter
Dimensions
115.00mm×85.00mm
Power Requirements
+3.3V:2.0 A(MAX)(except inrush current or ripple current)
Environment *2
Operating temperature: 0℃ to 50℃
Humidity: 35% to 80%(non-condensing)
OS
 −

*1: Maximum internodal distance differ according to the optical cable to be used
*2: Storage environment
   Temperature: -20℃ to 70℃ , Humidity 35% to 80% (non-condensing)
