SWIR VGA InGaAs Camera

ABA-003IR

950nm to 1700nm Wavelength bandwidth InGaAs Sensor Short Wave Infrared VGA Camera

rohs対応


e specification and externals of product are for the improvement a previous notice and might be changed.

Features

  • Wavelength bandwidth : 950nm to 1700nm
  • VGA Resolution (640 ×512 pixels), 20 micron pixel size
  • Exposure control : 1μ s to 10ms
  • Video output bit : 8/10/12/14 bit
  • Pixel defect correction function, Internal cooling function, Shading correction function, Lookup table function

Specification

Model ABA-003IR-GE
ABA-003IR-CL
Interface Gigabit Ethernet (1000BASE-T)
Camera Link(SDR)
Image sensor 2 step Peltier cooling InGaAs sensor x 1
Effective pixel:640(H) x 512(V)
Pixel size:20μm x 20μm
Effective image size:12.8mm x 10.24 mm
Wave length 950nm to 1700nm
Pixel clock 25MHz Data rate:6.25MHz
Frame rate 4ports readout
Exposure time =1clock(1μsec):62fps
Exposure time =16msec: 31fps
Electronic shutter Global shutter system
Conversion efficiency 1μV/e-
S/N 55dB
Gain 0dB to +12dB
Black Level 0LSB to 127LSB
Function Status LED, Internal cooling mechanism, Internal/ External trigger, DSNU, PRNU, Blemish compensation, Shading compensation, Field upgrade capability
Video output 8 / 10 / 12 / 14 bit
Power supply DC +12V ±10%, Less 7W
Lens mount C mount (Applicable C mount is 1 inch type)
Operating ambient temperature -30℃ to +30℃ / 20 to 80% (Non-condensing)
Storage Temperature/Humidity 0℃ to +40℃ / 20 to 80% (Non-condensing)
Peltier cooling temperature 5℃ to +35℃ / 20 to 80% (Non-condensing)
Dimensions (WxHxD) 58(W) x 58(H) x 115(D) mm (excluding protrusion)
Weight 665g 675g
Regulation RoHS, CE
Camera update function SDK-TransFlyer TConfigurator HyperTerminal
Cable (Option) CAT5E, CAT6 LAN cable Camera Link SDR cable
Software Image input/Communication:
 SDK-TransFlyer(AZP-ACAPTF-01)
 GigE Vision®,GenICam™
 GenICam™ GenTL
Image input:
 SDK-AcapLib2 (AZP-ACAP- 02) Communication:
 HyperTerminal

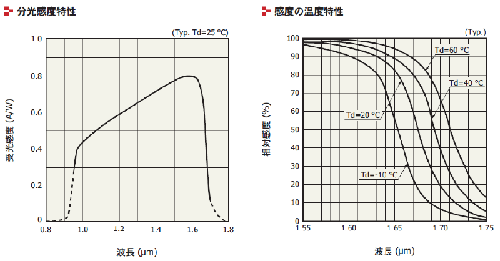

Sensor response

ALI-6000 I/F

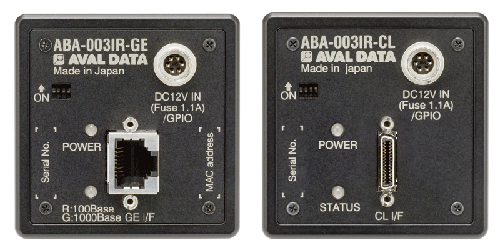

Interface

ALI-6000 I/F

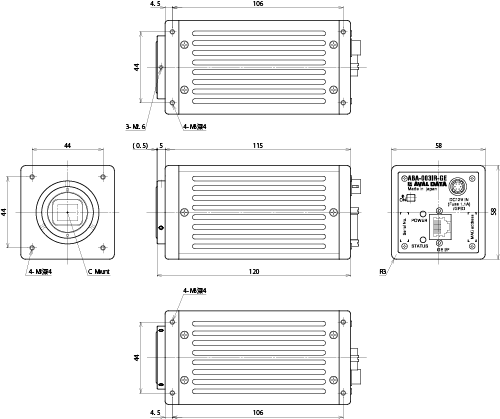

Dimensions
