SWIR
Line Sensor Camera

ABL-005IR

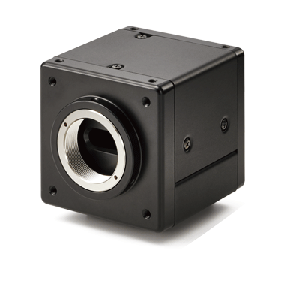

ABL-005IR is a short wavelength infrared SWIR camera (near - infrared camera) using InGaAs line sensor with sensitivity of 512 pixels, pixel size 25 micron, 950 nm to 1700 nm.
It is a product that excels in cost performance and easy to introduce to inspection equipment in factories and others.

rohs対応


e specification and externals of product are for the improvement a previous notice and might be changed.

Features

  • Detection wavelength band 950 nm to 1700 nm

  • InGaAs line sensor with 512 pixels, 25 micron pixel size

  • Two kinds of interface products of GigE Vision and Camera Link are available according to the application

  • Line rate 8.1 KHz, exposure time 10 μs to 1 ms

  • Optional exposure control by external trigger signal

  • Video output bit can be switched from 8/10/12-bit output

  • Equipped with pixel defect correction function

  • Shading correction function installed

Specification

Model ABA-005IR-GE
ABA-005IR-CL
Interface Gigabit Ethernet (1000BASE-T)
Camera Link(SDR)
Image sensor InGaAs line sensor uncooled x 1
Effective pixel:512
Pixel size:25μm x 25μm
Wave length 950nm to 1700nm
Line rate / Exposure time 81KHz(Max) / 10μs to 1ms
S/N 58dB
Video output 8 / 10 / 12 bit
Video output format GigE Vision / Camera Link
Synchronization method Internal / external synchronization
PRNU Pixel correction function and mask function of dark spot and bright spot
This function works onsite
Pixel defect: 1% or less
Shading correction Flat shading correction ON/OFF
Power supply DC +12V ±1V, Power consumption: 4W
Lens mount C mount (Applicable C mount is 1 inch type)
Operating ambient temperature -5℃ to +40℃ / 20 to 80% (Non-condensing)
Storage Temperature/Humidity -20℃ to +70℃ / 20 to 80% (Non-condensing)

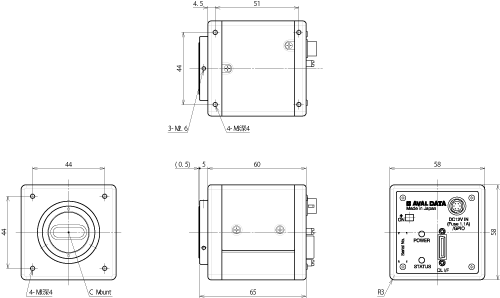

Dimensions (WxHxD) 58(W) x 58(H) x 60(D) mm (excluding protrusion)
Weight 302g 298g
Regulation RoHS, CE (planned)
Camera update function SDK-TransFlyer TConfigurator HyperTerminal
Cable (Option) CAT5E, CAT6 LAN cable Camera Link SDR cable
Software Image input/Communication:
 SDK-TransFlyer(AZP-ACAPTF-01)
 GigE Vision®,GenICam™
 GenICam™ GenTL
Image input:
 SDK-AcapLib2 (AZP-ACAP-02) Communication:
 HyperTerminal



Sensor response

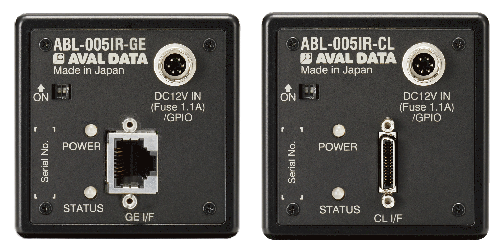

ALI-6000 I/F
