SWIR
Line Sensor Camera

ABL-005WIR新製品

ABL-005WIR is a camera using a 512pixel InGaAs line sensor that is sensitive to the near - infrared region (900 nm - 2550 nm, peak 2300 nm).
It improves the sensitivity on the long wavelength side and has a wide band.

rohs対応


e specification and externals of product are for the improvement a previous notice and might be changed.

Features

  • Detection wavelength band 900 nm to 2550 nm

  • InGaAs line sensor with 512 pixels, 25 micron pixel size

  • Line rate 13.8 KHz, exposure time 10 μs to 1 ms

  • Optional exposure control by external trigger signal

  • Video output bit can be switched from 8/10/12-bit output

  • GigE Vision interface product

  • Equipped with pixel defect correction function

  • Internal cooling function

  • Shading correction function

  • Lookup table function

Specification

Model ABA-005IR-GE
Interface Gigabit Ethernet (1000BASE-T)
Image sensor 2 step Peltier cooling InGaAs sensor
Effective pixel:512
Pixel size:25μm x 25μm
Wave length 950nm to 2550nm
Line rate / Exposure time 13.8KHz(Max) / 10μs to 1ms
Conversion efficiency 160nV/e-
S/N 50dB
Gain 0dB to +12dB
Black Level 0LSB to 127LSB Variable (at 10 bit)
Function Status LED, Internal cooling mechanism, Internal/ External trigger, DSNU, PRNU, Blemish compensation, Shading compensation, Field upgrade capability
Video output 8 / 10 / 12 bit
Power supply DC +12V ±1V, Power consumption: 9W
Lens mount C mount (Applicable C mount is 1 inch type)
Operating ambient temperature -5℃ to +40℃ / 20 to 80% (Non-condensing)
Storage Temperature/Humidity -20℃ to +70℃ / 20 to 80% (Non-condensing)
Peltier cooling temperature -30℃ to +35℃ / 20 to 80% (Use within the operating temperature range)
Dimensions (WxHxD) 72(W) x 58(H) x 115(D) mm (excluding protrusion)
Weight 302g
Regulation RoHS, CE (planned)
Camera update function SDK-TransFlyer TConfigurator
Cable (Option) CAT5E, CAT6 LAN cable
Software Image input/Communication:
 SDK-TransFlyer(AZP-ACAPTF-01)
 GigE Vision®,GenICam™
 GenICam™ GenTL

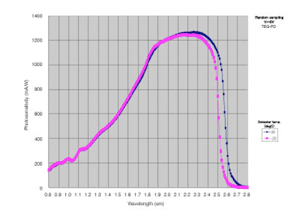

Sensor response

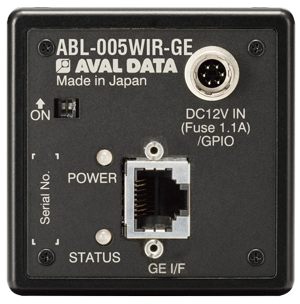

Interface

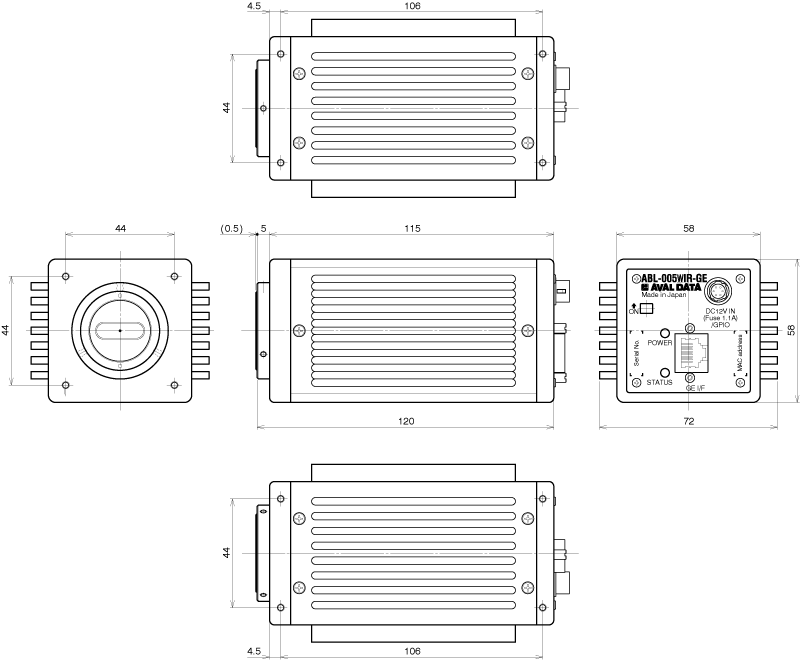

Dimensions
