PCI Expressб
Gigabit Ethernet Vision Compliant
Interface board

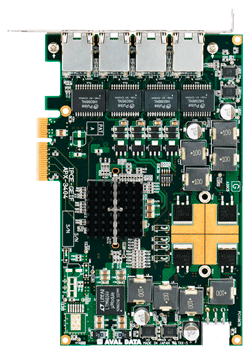

APX-3404





rohsб


The specification and externals of product are for the improvement and might be changed without previous notice

Features

Supports PCI-Express x 4

Four Gigabit Ethernet ports

Power Over Ethernet(PoE) IEEE802.3

PoE camera automatic detection

9Kbyte Jumbo Frame

Specification

Model
APX-3404
Ethernet Port
1000BaseT, 100BaseTX, 10BaseT
4 ports Ethernet Controller : 82580EB
Power Over Ethernet(PoE) IEEE802.3af *Supply 7W(MAX) /1ch port Including the connector for receiving the PoE power
9Kbyte Jumbo frame
RJ45 Connector
System Bus
PCI Express 2.0 x4(Gen2) 5.0GT/S
Power Requirements
2.5A( +3.3V)
Environment
Operating temperature: 0 to 50
Humidity: 35% ~ 85% (non-condensing)

Dimension
167.65 (W)111.15(D) (PCI-E short size),
Panel width 20mm (non-projection)
OS
Windows
Software
Image acquisition: Intel driver + camera/software vendor's driver



Panel

Other document

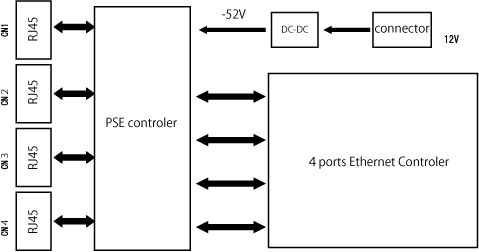

Block Diagram
