PCI Expressб
4-channel USB3.0 I/F
Frame Grabber

APX-3424
APX-3424-1

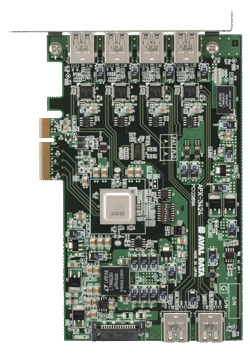

APX-3424 series are USB3.0 PCI Express I/F board for the high-speed cameras which transfer
the image data at 300MB/s. In order to transfer the input data to the PC without delay, it has controller
chips on each USB ports and PCI Express bus switch.



CameraLink rohsб


The specification and externals of product are for the improvement and might be changed without previous notice

Features

USB3.0 4ch

Controller chips on each USB ports

Equipped with PCI Express bus switch

Supports PCI-Express2.04 Gen2 (5.0GT/S)

Specification

Model
APX-3424
APX-3424-1
I/FPanel
USB3.0 4ch
I/FOn-board
USB3.0 2ch
USB3.0 Controler
RENESAS PD7202024
VBUS Output
VBUS Output when a PC is in standby or suspend mode (Feeding to the camera when the PC is in standby or suspend mode)
No-VBUS output when a PC is in standby or suspend mode (Stop feeding to the camera when the PC is in standby or suspend mode)
System bus
4 PCI-Express2.0 Gen2 (5.0GT/S)
Power consumption
+12V+3.3V+3.3V_AUX
+12V
+3.3V, +3.3VAUX from card edge for sleep or suspend mode is required.

Environment
Temperature : 0 to 50
Humidity : 35% to 85%(non-condensing)
Dimension
168mm x 112mm
Panel width 20mm(without projection)
OS
Windows 32 bit/64 bit
Environmental Compliance
RoHS



Panel

TOP
