4-channel, Analog I/F
Frame grabber board

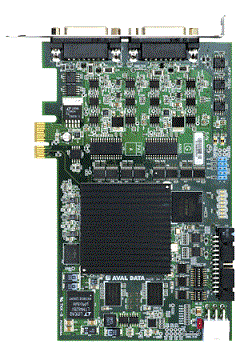

APX-3504

APX-3504 is a multi 4-channel PCI Express frame grabber board for the monochrome analog camera.

rohs対応


The specification and externals of product are for the improvement and might be changed without previous notice

Features

●4ch image input circuit for synchronous or asynchronous input between for each
   channels

●Supports NTSC monochrome camera and 30fps standard speed, 60fps double   speed progressive camera

● Random trigger mode for pulse control of exposure time

● 8bit/10bit image input resolution

●Indipendent Gain and Off set circuit
● 256MByte of frame memory (FIFO format)

●DMA function for each image input channels for high-speed image transfer

●16 of DIO input/output(TTL / Open collector : input: 8, output: 8)

●Image acquisition control triggered by DI signal

●DO signal can be used as a strobe luminescence pulse signal

●Power feeding into the camera(required power supply separate from PCI-e card
   edge)

● PCI-Express×1 short size

Specification

Model
APX-3504
Image Acquisition I/F
◎Signal format : NTSC monochrome interlaced scan
    Monochrome non-interlaced scan
    Image acquisition speed: 1/30 second per frame ※1
◎Input : 4ch
◎Synchronous format : External synchronization
    (be impossible to synchronize with a camera)
◎Input resolution : 8bits/10bits
◎Aspect ratio : 1:1
◎Sampling clock : 12.273MHz ※1
◎Image acquisition size : 640 × 484 ※1
Output Signal for the Camea
◎Synchronous signal output : HD/VD
    Output level : High impedance 5Vp-p
    75Ω terminated 2.5Vp-p
◎Trigger output : TTL 5V
Memory
256Mbyte
GPIO
◎Input / Output level : TTL / Open collector
◎Input / Output score : Input / 8, Output / 8
Syetem bus
x 1 PCI Express 2.0 Gen2(2.5GT/s)
Power consumption
+3.3V : 120mA, +12V 1.4A : PCI-e()
Environment
Temperature : 0 to 5
Humidity : 35% to 85%(non-condensing)
Dimension
167.65mm(W) x 111.15(D)mm 1 slot
Weight
160g
OS
Windows
Environmental Compliance
RoHs, Halogen-free

※1 About supported camera

This module supports scanning method below as standard.

◎NTSC camera (Example / SONY : XC-ES50 / XC-ST70, etc)

◎Standard speed progressive camera

    (Example / SONY : XC-56, TOSHIBA TELI : CS8550i, etc)

◎Double speed progressive camera

    (Example / SONY : XC-HR50/57, TOSHIBA TELI : CS8560BDi, etc)

Supported format except above will be considered.


Supported Camera Manufactures

Contact us for the detailed information of supported camera and Manufactures.
