Compact Image processing PC

ASI-1324T6新製品

ASI-1324T6FH is a COM Express platform which can be connected to four Camera Link(Base) cameras.It supports COM Express Type6, with 4th Generation Intel CPU (Haswell), USB, LAN, and also Camera Link interface.This product offers powerful system construction which can compare favorably with general PC for control device or image processing system with increased miniaturization.

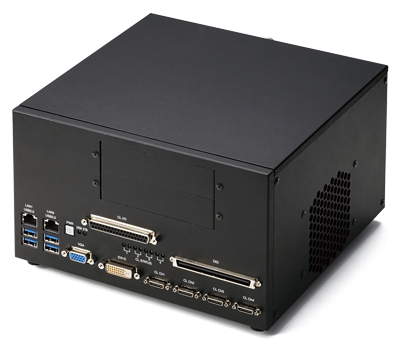

ASI-1324T6

rohs対応


e specification and externals of product are for the improvement a previous notice and might be changed.

Features

  • COM Express (Type6) CPU(Intel Core i7/i5)

  • Power Over Camera Link x 4ch (SDR connector) *1

  • CL I/O connector for the control of image acquisition x 1ch

  • Photo-Isolation DIO connector x 1ch (DI:32, DO:32)

  • I/F:1000BASE-T LAN x 2ch, USB3.0 x 4ch, DP x 1ch, VGA x 1ch, DVI-D x 1ch

  • PCI Express expansion slot: 2port *2

  • Operating ambient temperature: 0 to 50℃

  • *1 Camera Link I/F is compatible with AVAL DATA's frame grabber board APX-3324A
    *2 PCI Express x 8 (Gen3:8.0GT/s), PCI Express x 4 (Gen 2:5.0GT/s)

Specification

Model ASI-1324T6FH-i7-8G ASI-1324T6FH-i5-8G
Main function・Device
CPU Module(SOM) Intel Core™ i7-4700EQ(Haswell)
2.4GHz, 4 core/8 thread
(COM Express Type6 Module)
Intel Core™ i5-4400E(Haswell)
2.7GHz, 2 core/4 thread
(COM Express Type6 Module)
L3 Cache 6MB 3MB
Chipset Mobile Intel QM87 Express chipset
Memory 8GB(DDR3L-1600 Unbuffered SO-DIMM)No ECC, (Max:16GB)
LAN LAN1 : COM Express CPU Module/i217 (Intel)
LAN2 : Carrier Board/i210 (Intel)
Interface
Camera Link Power over Camera Link
SDR 26pin x 4ch
BASE Configuration Only
LAN RJ45 1000BASE-T/100BASE-TX/10BASE-T x 2ch
USB 3.0 Type A x 4ch
Photo Isolation DIO 96pin x 1ch
Input: Photo Isolation x 32bit
Output: Photo Isolation x 32bit [NPN Open collector output 100mA(Max)]
CL I/O D-Sub37pin x 1ch,Trigger(Inx4)/Strobe(OUTx4)
Encoder A/B/Z/D(RS422)/OPT(Inx4)/GP_OUT(OUTx8)
DVI-D 29pin(Socket) x 1ch
VGA HD D-Sub 15pin x 1ch
USB 2.0 Type Ax2ch
COM RS-232Cx4ch
Display Port (1.2) Display Port Connector x 1ch
FG M3x6mm WSEMSx1
PCI Express Expansion Slot SKT1: PCIe Gen 3.0 (Gen3) 8.0GT/s x8 Lane
SKT2: PCIe Gen 2.0 (Gen2) 5.0GT/s x4 Lane
On-board interface
M.2 (Rev.1.0) SATA SSDx1ch/Rev1.0/SATAⅢ(6Gbps)Type2242/2260/2280
SATAⅢ128GB
SATA SATAⅢ x 1ch
USB2.0 Type A x 1ch
Others
POWER IN DC+24V(±10%)
Dimension(WxHxD) 230mm(W) x 134.25mm(H) x 221.3mm(D)( without projection)
Weight 3.0kg
Environmental Consideration Lead free solder, RoHS
OS Windows7 (32bit/64bit)
Software Development Kit;SDK-AcapLib2



Interface

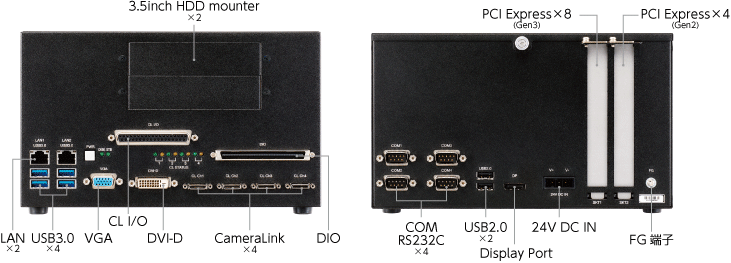

ASI-1234T6 I/F

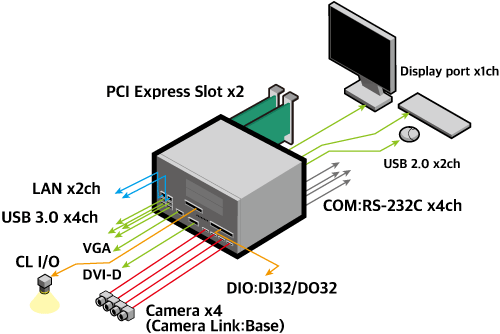

ASI-1234T6 Image

Other documents

Block diagram

Software: AcapLib+
